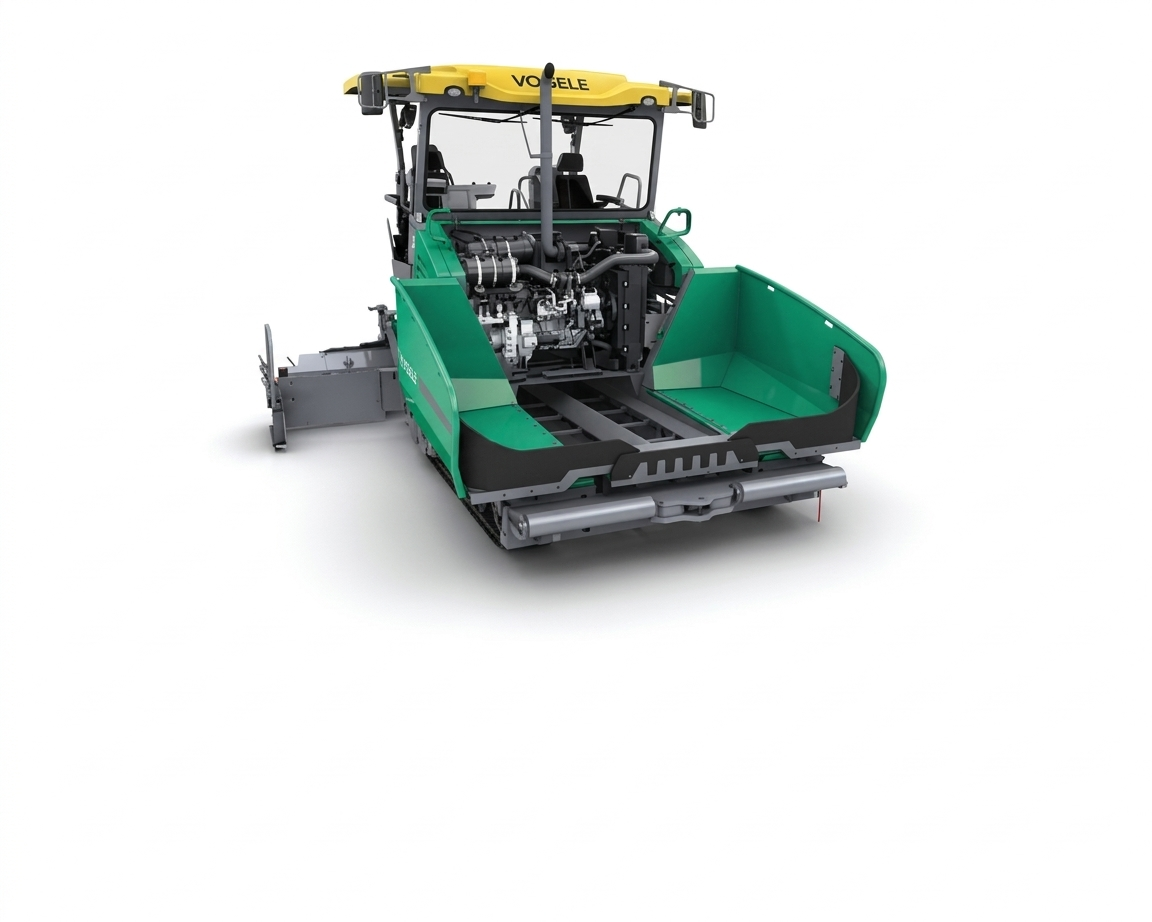

The VOGELE SUPER 1700-3i is a tracked asphalt paver from VOGELE’s Universal Class, designed for a wide range of road construction, rehabilitation, urban paving and commercial paving applications. It is powered by a Cummins QSB 4.5-C173 four-cylinder liquid-cooled diesel engine delivering 129 kW (173 hp) at 2,000 rpm, with an ECO mode output of 119 kW (160 hp). The SUPER 1700-3i features electronically controlled crawler-track drives, the ErgoPlus 3 operating system, Niveltronic Plus automated grade and slope control, and VÖGELE EcoPlus technology. It can achieve paving speeds of up to 76 m/min and is compatible with VF 500 and VR 500 extending screeds, providing paving widths up to 6.4 m and layer thicknesses up to 300 mm.

Lloyd & Fedders Automotive Systems LLC supplies spare parts for VÖGELE SUPER 1700-3i asphalt pavers, including engine, hydraulic, conveyor, auger, screed, electrical, sensor, filter, track and other maintenance and wear components.

PAVER SPECIFICATIONS
ENGINE POWER  OPERATING WEIGHT  MAXIMUM PAVING WIDTH
129 kW (173 hp)                18,300–18,800 kg                       6.4 m

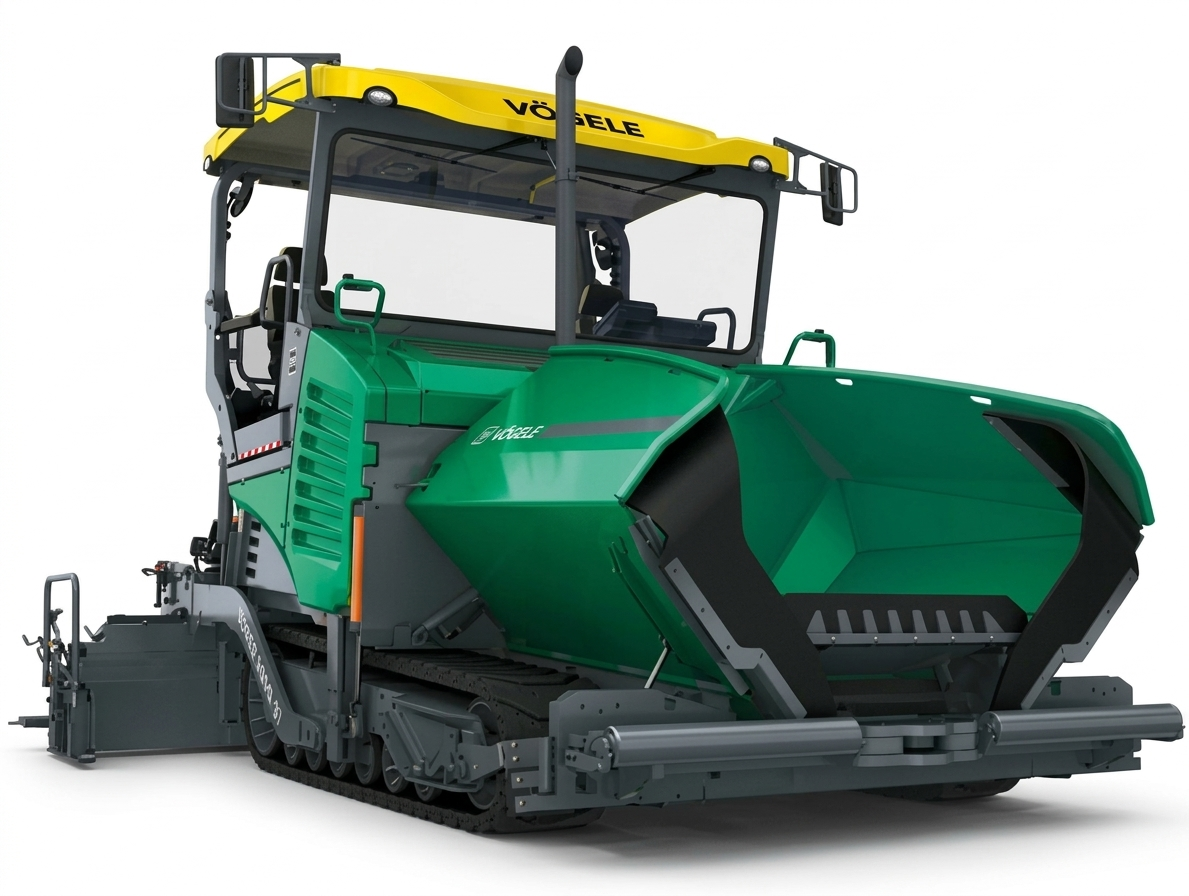

The VOGELE SUPER 2000-3i is a tracked asphalt paver from VÖGELE’s Highway Class, designed primarily for highway construction, major infrastructure projects and large-scale commercial paving applications where high productivity and paving performance are required. It is powered by a Cummins QSB 6.7-C250 six-cylinder liquid-cooled diesel engine delivering 186 kW (250 hp) at 2,000 rpm, with an ECO mode output of 167 kW (224 hp). The SUPER 2000-3i features VÖGELE’s ErgoPlus 3 operating system, Niveltronic Plus automated grade and slope control, electronically controlled crawler tracks and VÖGELE EcoPlus technology. It can achieve paving speeds of up to 76 m/min and is available with VF 600, VR 600 and AB 600 extending screeds, providing paving widths up to 8.6 m and layer thicknesses up to 300 mm.

Lloyd & Fedders Automotive Systems LLC supplies spare parts for VÖGELE SUPER 2000-3i asphalt pavers, including engine, hydraulic, conveyor, auger, screed, electrical, sensor, filter, track and other maintenance and wear components.

PAVER SPECIFICATIONS
ENGINE POWER  OPERATING WEIGHT  MAXIMUM PAVING WIDTH
186 kW (250 hp)        21,900–22,450 kg                  8.6 m

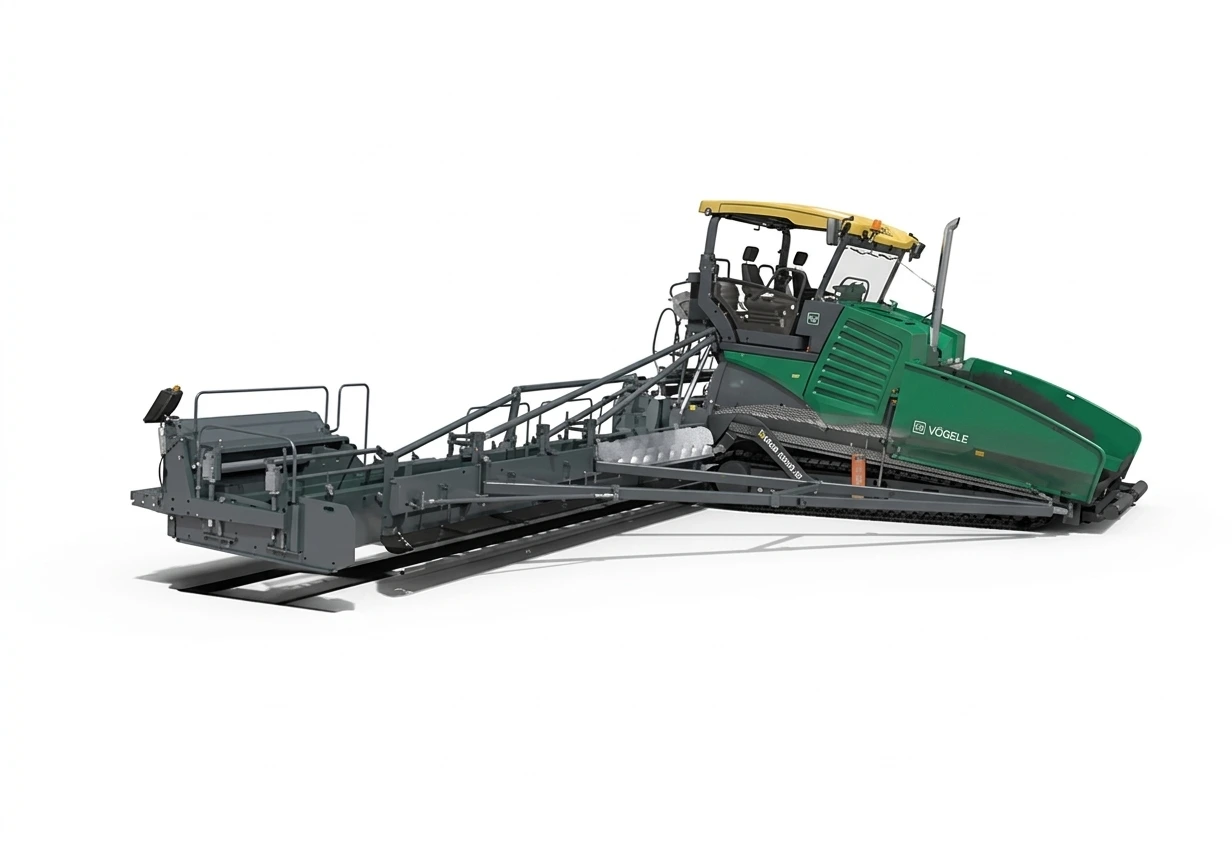

The VOGELE SUPER 3000-3i is a high-performance tracked asphalt paver from VÖGELE’s Highway Class, designed for large-scale road construction projects such as motorways, highways and airport runways, as well as for paving thick anti-freeze layers and crushed-stone base courses. It is powered by a Cummins X12-C475 six-cylinder diesel engine delivering approximately 354 kW (475 hp) at 1,800 rpm. The SUPER 3000-3i features VÖGELE’s ErgoPlus 3 operating concept, PaveDock Assistant, Heavy-Duty kit and an innovative material handling system. It can achieve paving speeds of up to 25 m/min and, depending on the selected screed, provides paving widths from 3 m up to 18 m and layer thicknesses up to 500 mm.

Lloyd & Fedders Automotive Systems LLC supplies spare parts for VÖGELE SUPER 3000-3i asphalt pavers, including engine, hydraulic, conveyor, auger, screed, electrical, sensor, filter, track and other maintenance and wear components.

PAVER SPECIFICATIONS
ENGINE POWER  OPERATING WEIGHT  MAXIMUM PAVING WIDTH
354 kW (475 hp)              30,250–32,850 kg                  18 m

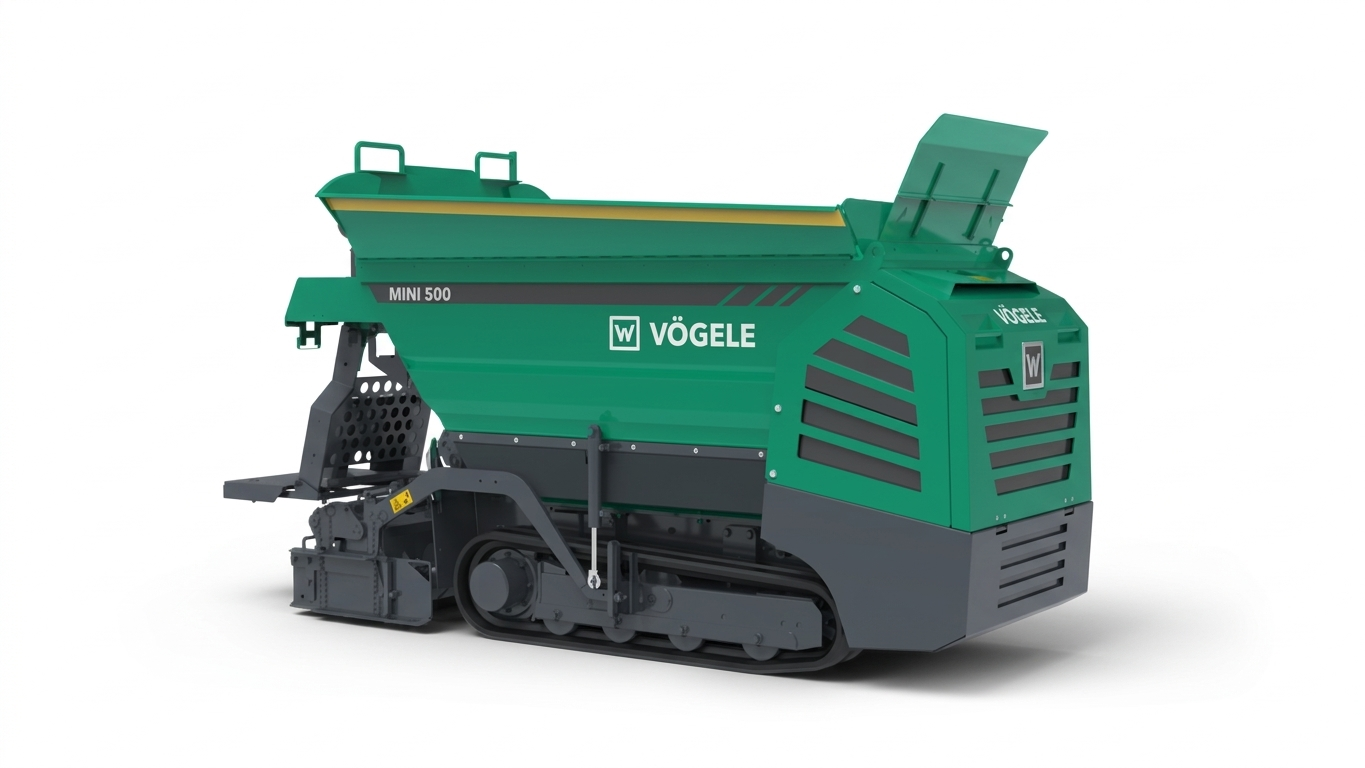

Lloyd & Fedders Automotive Systems LLC supplies spare parts for VOGELE MINI 500 asphalt pavers, supporting customers with genuine OEM, original-equivalent and quality aftermarket replacement components. The VOGELE MINI 500 is part of the VOGELE Mini Class and is designed for small-scale paving applications such as repair work, footpaths, cycle paths, farm tracks, minor roads, car parks and confined paving areas. The current MINI 500 has a 0.9 m basic paving width, maximum paving width of 1.8 m and nominal output of 10.2 kW.

We can supply a wide range of VOGELE MINI 500 spare parts, including engine components, hydraulic parts, electrical and electronic components, filters, belts, bearings, seals, rollers, track and undercarriage components, conveyor and material-feed components, screed parts, heating elements, sensors, switches and other wear and service parts.

VOGELE's official parts system categorizes spare parts into areas including feed of mix, screed, crawler drive, wheel drive, grade and slope control, maintenance parts, lighting and emergency kits. Our team can assist with part-number identification, cross-reference, OEM and aftermarket sourcing, quotation and international export supply. For accurate identification, customers can provide the VOGELE MINI 500 model, machine serial number, part number or photographs of the required component.

PAVER SPECIFICATIONS
ENGINE POWER  OPERATING WEIGHT  MAXIMUM PAVING WIDTH
55.4 kW (74 hp)                 6,500–6,600 kg                        3.2 m

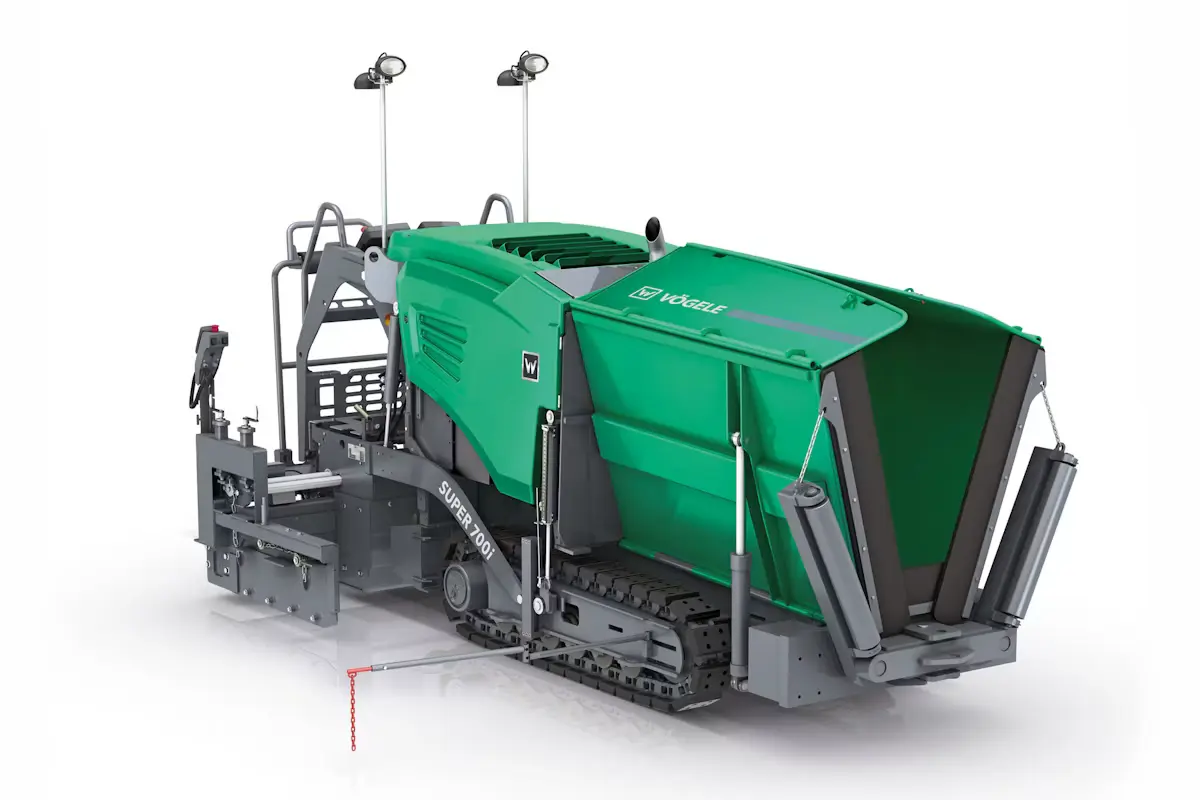

The  SUPER 700i is a compact tracked asphalt paver from ’s Mini Class, designed for road construction, repair work, driveways, confined work areas and other small-scale paving applications. It is powered by a Deutz TCD 2.9 L4 four-cylinder liquid-cooled diesel engine delivering 55.4 kW (74 hp) at 2,200 rpm, with an ECO mode for efficient operation. The SUPER 700i features electronically controlled crawler-track drives, ’s ErgoBasic operating system, and the Niveltronic Basic grade and slope control system.

It can achieve paving speeds of up to 30 m/min and is available with AB 200 V or AB 220 V extending screeds, providing paving widths from approximately 0.5 m up to 3.2 m and layer thicknesses up to 150 mm. Its compact dimensions and narrow clearance width make it suitable for projects where manoeuvrability and access are important.

Lloyd & Fedders Automotive Systems LLC supplies spare parts for SUPER 700i asphalt pavers, including engine, hydraulic, electrical, screed, conveyor, auger, track and maintenance components.

PAVER SPECIFICATIONS
ENGINE POWER  OPERATING WEIGHT  MAXIMUM PAVING WIDTH
55.4 kW (74 hp)             6,500–6,600 kg                                 3.2 m

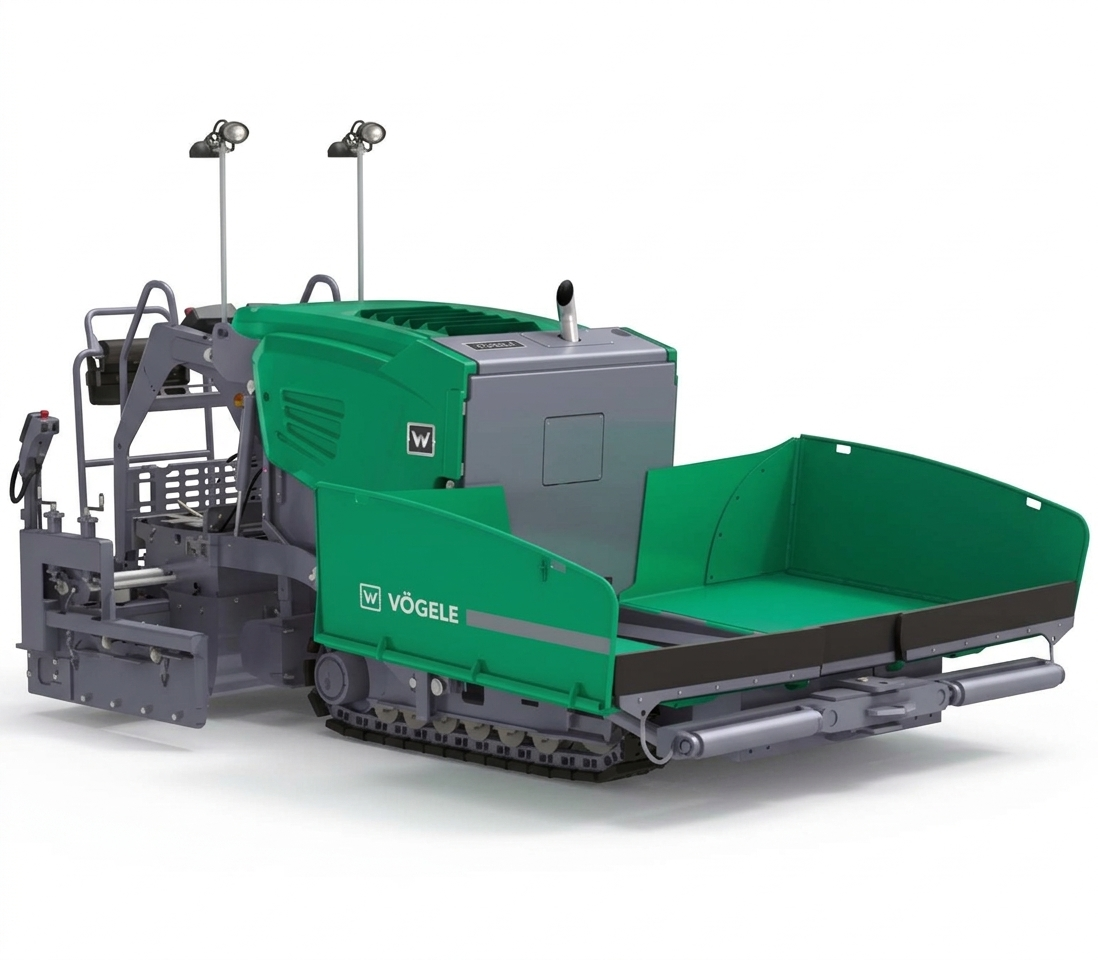

The VOGELE SUPER 800-5 P is a compact tracked asphalt paver from VOGELE’s Mini Class and the first Mini Class paver of the new Dash 5 generation. It is designed for road construction, repair work, narrow construction projects, footpaths, cycle paths and other applications where compact dimensions and high manoeuvrability are important. The SUPER 800-5 P is powered by a liquid-cooled four-cylinder Deutz diesel engine delivering 55.4 kW of nominal output and features VOGELE’s ErgoBasic 5 operating concept and a new double-folding material hopper for improved visibility and manoeuvrability. It provides paving widths from 0.5 m to 3.5 m, a maximum layer thickness of 200 mm, and a maximum laydown rate of 300 t/h. The machine is available with AB 200 V/TV and AB 220 V/TV extending screeds.

Lloyd & Fedders Automotive Systems LLC supplies spare parts for VOGELE SUPER 800-5 P asphalt pavers, including engine parts, hydraulic components, conveyor and auger parts, screed components, electrical parts, sensors, filters, service parts, track components and other wear and maintenance parts.

PAVER SPECIFICATIONS
ENGINE POWER  OPERATING WEIGHT  MAXIMUM PAVING WIDTH
55.4 kW                 6,180–6,600 kg                   3.5 m

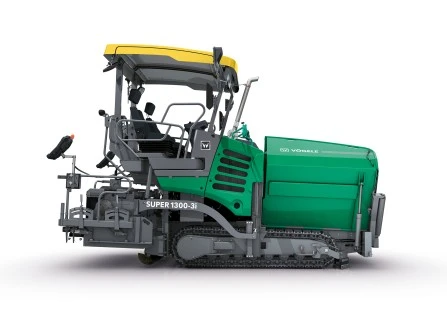

The VOGELE SUPER 1300-3i is a compact tracked asphalt paver from VOGELE’s Compact Class, designed for road construction, rehabilitation, footpaths, cycle paths, farm tracks, minor roads and other small- to medium-scale paving applications. It is powered by a Deutz TCD 3.6 L4 four-cylinder liquid-cooled diesel engine delivering 74.4 kW (100 hp) at 2,000 rpm, with an ECO mode output of 68.7 kW. The SUPER 1300-3i features electronically controlled crawler-track drives, the ErgoPlus 3 operating system, Niveltronic Plus automatic grade and slope control, and the AutoSet Basic function for efficient relocation. It can achieve paving speeds of up to 30 m/min and works with the AB 340 extending screed, providing paving widths from 0.75 m up to 5 m and layer thicknesses up to 250 mm.

Lloyd & Fedders Automotive Systems LLC supplies spare parts for VOGELE SUPER 1300-3i asphalt pavers, including engine, hydraulic, conveyor, auger, screed, electrical, sensor, filter, track and other maintenance and wear components.

PAVER SPECIFICATIONS
ENGINE POWER  OPERATING WEIGHT  MAXIMUM PAVING WIDTH
74.4 kW (100 hp)           10,650–10,850 kg                         5 m
